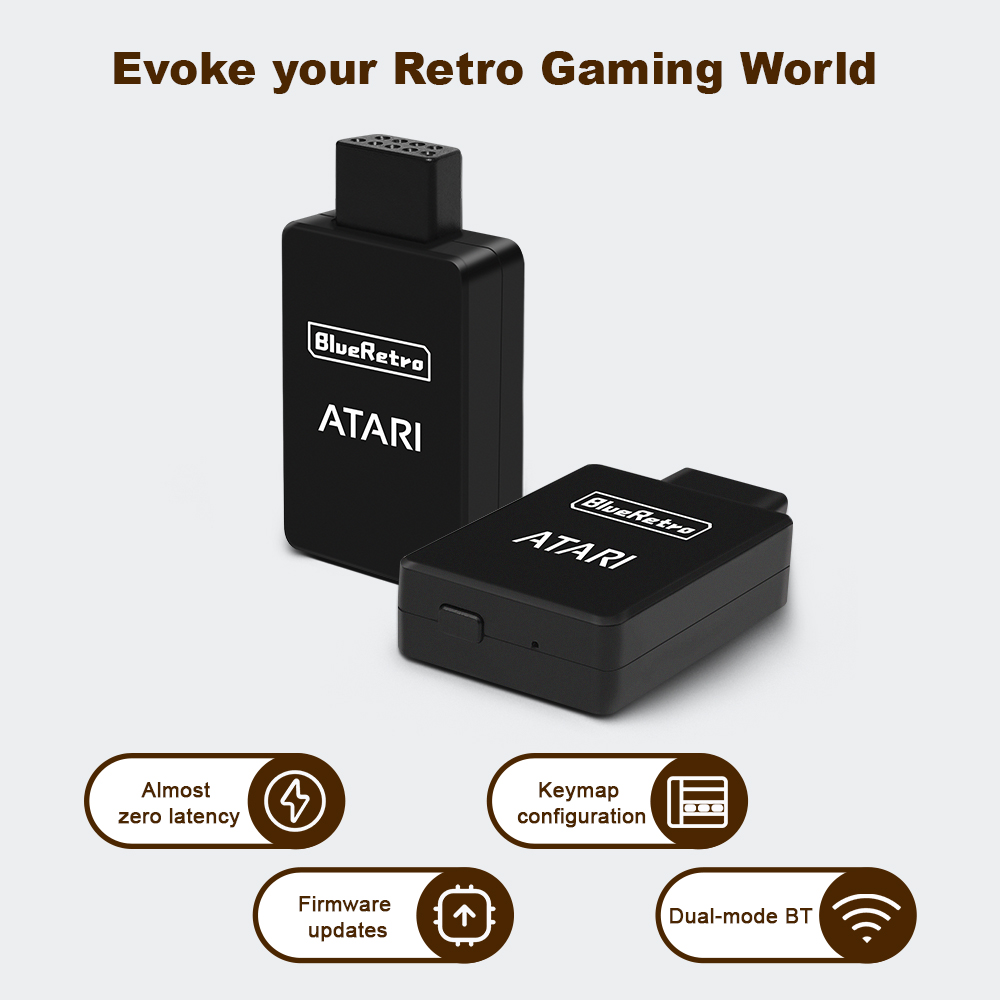

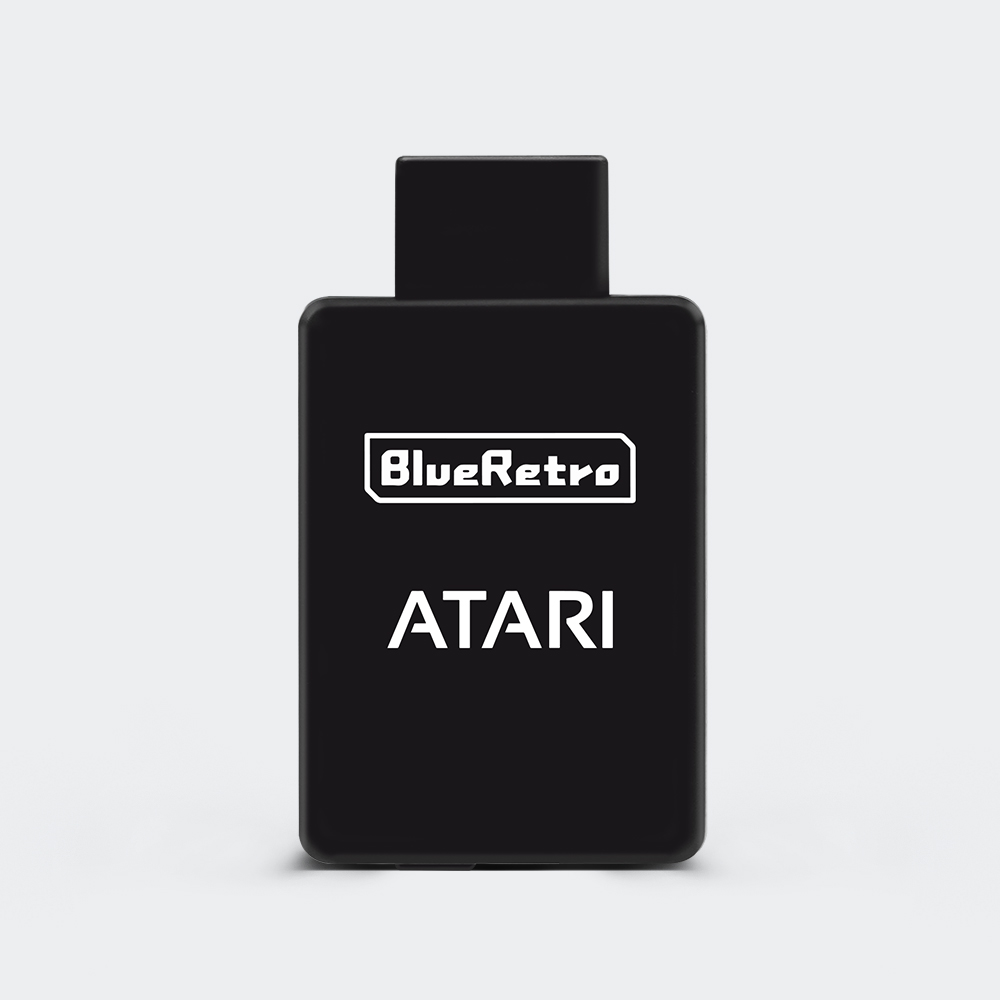

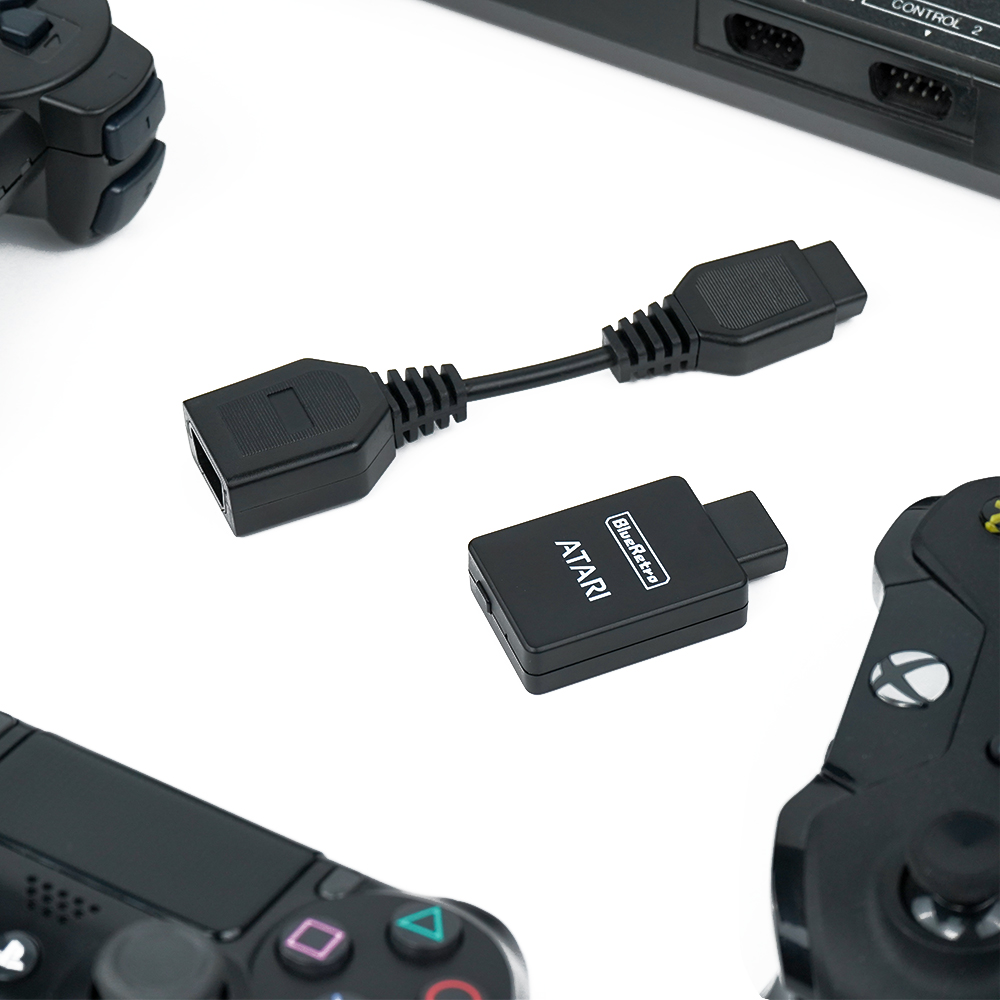

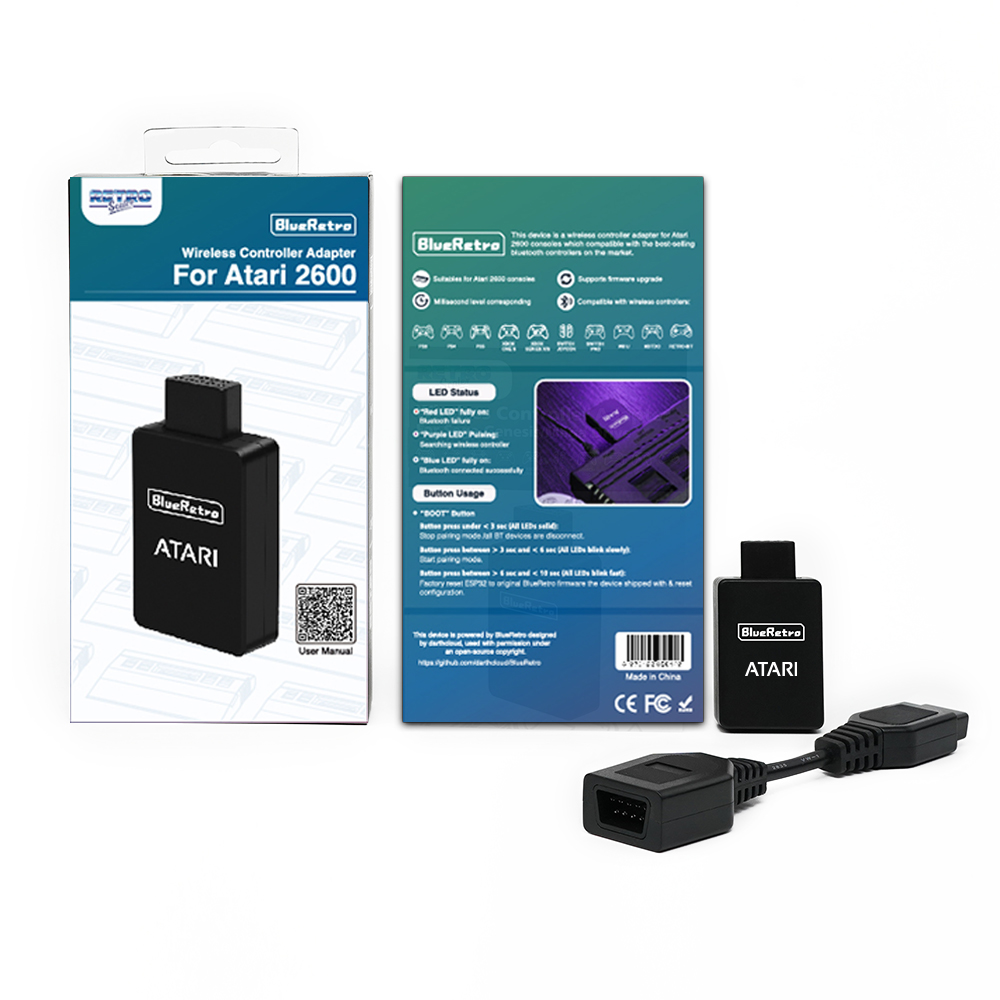

RetroScaler BlueRetro Wireless Game Controllers Adapter for Atari 2600 console to PS3 PS5 8itdo Xbox One S Wireless Controllers

Introdouctions:

BlueRetro, a multiplayer Bluetooth controllers adapter for Atari 2600 console, is an open source project based on darthcloud. It uses the popular ESP32 chip. It can support original Wii, Switch, PS3, PS4, PS5, Xbox One console wireless controller.

Open source projects:

GitHub – darthcloud/BlueRetro: Multiplayer Bluetooth controllers adapter for retro video game consoles

List of tested Bluetooth devices:

https://github.com/darthcloud/BlueRetro/wiki/Controller-pairing-guide#1—list-of-tested-bluetooth-devices

Firmware updates guide:

https://github.com/darthcloud/BlueRetro/wiki/BlueRetro-BLE-Web-Config-User-Manual#5—ota-fw-update-page

Features：

• Only suitable for Atari 2600 consoles.
• Support firmware update.
• Supports button remapping.
• Easy to use web configuration interface.
• Almost zero latency, the PS4&PS5 controller less than 6ms of latency using Blueretro.

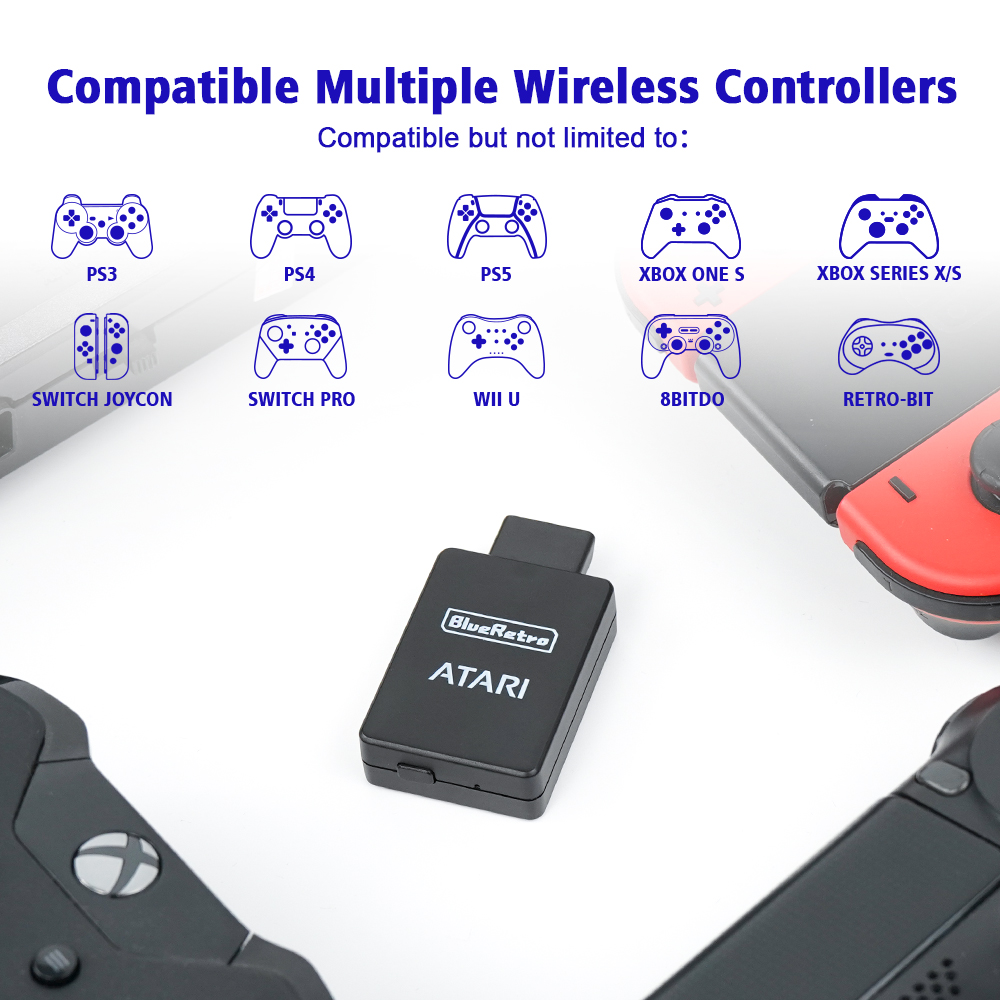

• Compatible Xbox One S/Xbox Series X|S /Wii / Wii U Pro/Switch Pro / Switch Joycon /8bitdo/Retro-Bit/PS3/ps4/ps5 wireless controller(NOTE:only official PS3 / PS4 controllers are supported.).

BlueRetro LED Status

RED LED FULLY ON: Bluetooth failure

PURPLE LED pulsing: Searching wireless controller

Blue LED OFF: Bluetooth connected successfully

BlueRetro Buttons Usage

Button:

Button press under < 3 sec (All LEDs solid):

Stop pairing mode /all BT devices are disconnect.

Button press between > 3 sec and < 6 sec (All LEDs blink slowly):

Start pairing mode.

Button press between > 6 sec and < 10 sec (All LEDs blink fast):

Factory reset ESP32 to original BlueRetro firmware the device shipped with & reset configuration.
